The Challenge of the Small Plot in Kathmandu
In the rapidly urbanizing landscape of the Kathmandu Valley, the traditional sprawling courtyard house has become a luxury of the past. With land prices in areas like Lalitpur, Koteshwor, and Bhaktapur soaring, the '3-aana' (approximately 1,000 sq. ft.) plot has become the standard for middle-class urban housing. However, building on a small footprint requires more than just scaling down a large house; it requires a radical rethink of vertical space, light penetration, and structural efficiency.
1. Vertical Zoning: Beyond the Floor Plan
When horizontal space is restricted, we must look upward. Traditional Nepali houses often used the ground floor for storage or shops (Kaba). In modern small-plot design, we implement Split-Level Flooring. By creating half-level differences between the living room and the kitchen, you eliminate the need for long, light-blocking corridors. This creates a sense of openness and allows light from the south-facing windows to reach deeper into the north side of the house.
2. The 'Light Well' Strategy

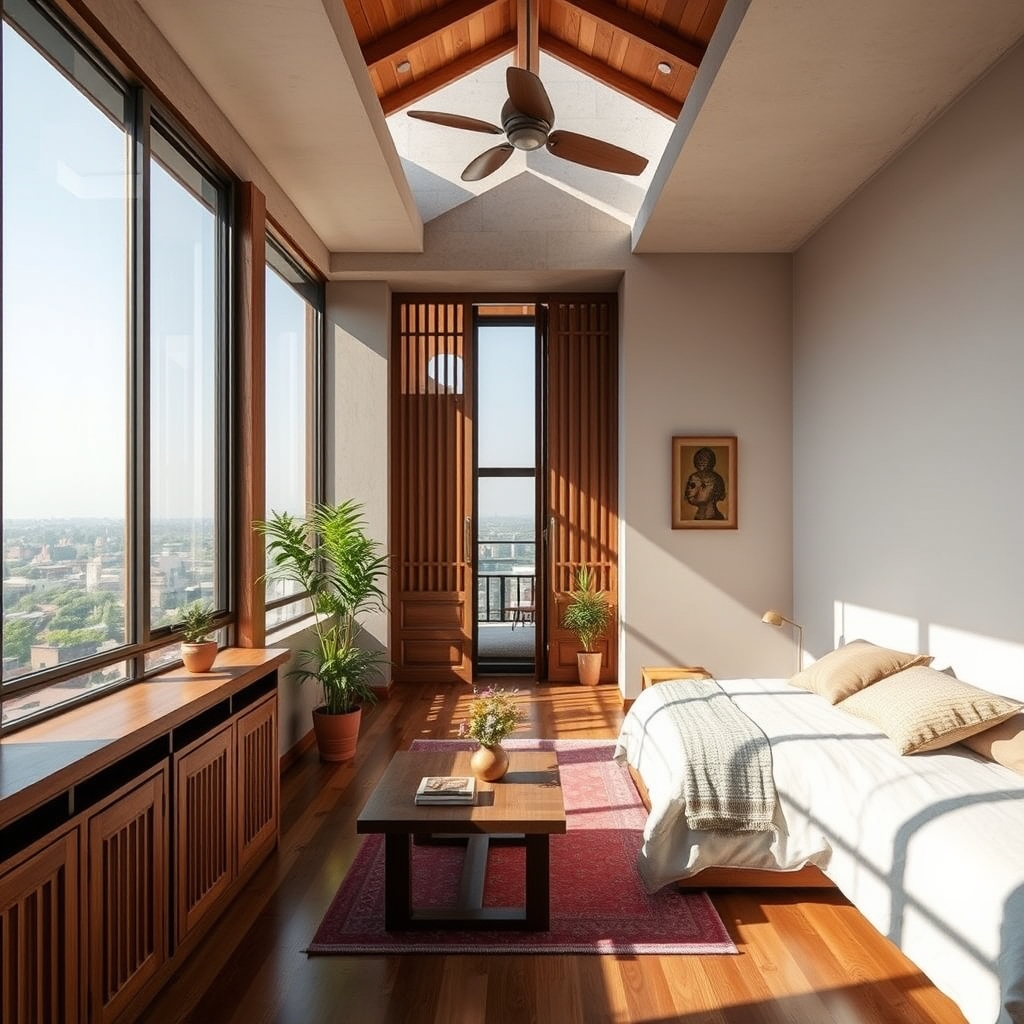

One of the biggest complaints in Kathmandu’s narrow gallis is the lack of sunlight. For a small plot, a central Chowk-inspired light well or a small internal courtyard is not a waste of space; it is a necessity. By installing a high-quality glass skylight at the top of the stairwell, you can funnel natural light down to the ground floor. This reduces electricity consumption and prevents the 'claustrophobic' feeling common in row houses.
3. Smart Setbacks and Cantilevers
According to Kathmandu’s building bylaws, specific setbacks must be maintained from the boundary. To maximize the carpet area, we utilize engineered cantilevers (overhangs) starting from the first floor. This allows you to gain extra square footage for balconies or extended bedrooms without violating ground-level setback rules. However, these must be carefully calculated by a structural engineer to ensure earthquake resilience, especially given Nepal's seismic profile.
4. Material Innovation for Space Saving
Every inch counts. Replacing traditional 9-inch thick interior brick walls with lightweight AAC blocks or 4-inch reinforced partition walls can save significant floor area. For the staircase—often the biggest space-hogger—consider a steel-structure floating staircase. It feels lighter, allows light to pass through, and provides usable space underneath for a small puja room or storage, adhering to Vastu principles.
5. Vastu Shastra on a Small Footprint
Fitting Vastu into a small plot is a puzzle. At Vastuveda Designs, we prioritize the 'Brahmasthan' (center of the house) by keeping it open and clutter-free. We recommend placing the kitchen in the South-East (Agni Kone) and the Master Bedroom in the South-West (Nairitya Kone). In a small house, if these cannot be perfectly aligned, we use color therapy and symbolic corrections to balance the energy without sacrificing functional space.
6. Cost Considerations in 2024
Building a compact, high-quality house in Kathmandu currently ranges from NPR 4,500 to 6,000 per square foot for a 'turnkey' finish. While the plot is small, the cost per square foot can be slightly higher due to the complexity of working in tight spaces and the need for premium space-saving fittings. Investing in multi-functional furniture and built-in storage during the construction phase can save lakhs in future interior renovations.
