The Challenge of Small-Plot Urban Living in Kathmandu
In the rapidly densifying landscape of the Kathmandu Valley, the traditional dream of a sprawling bungalow is being replaced by the reality of the small-plot challenge. With land prices in areas like Koteshwor, Sitapaila, and Imadol soaring, most homeowners are now working with plots ranging from 2.5 to 3.5 aana. Designing a home on such a small footprint requires moving away from generic blueprints and embracing architectural precision.

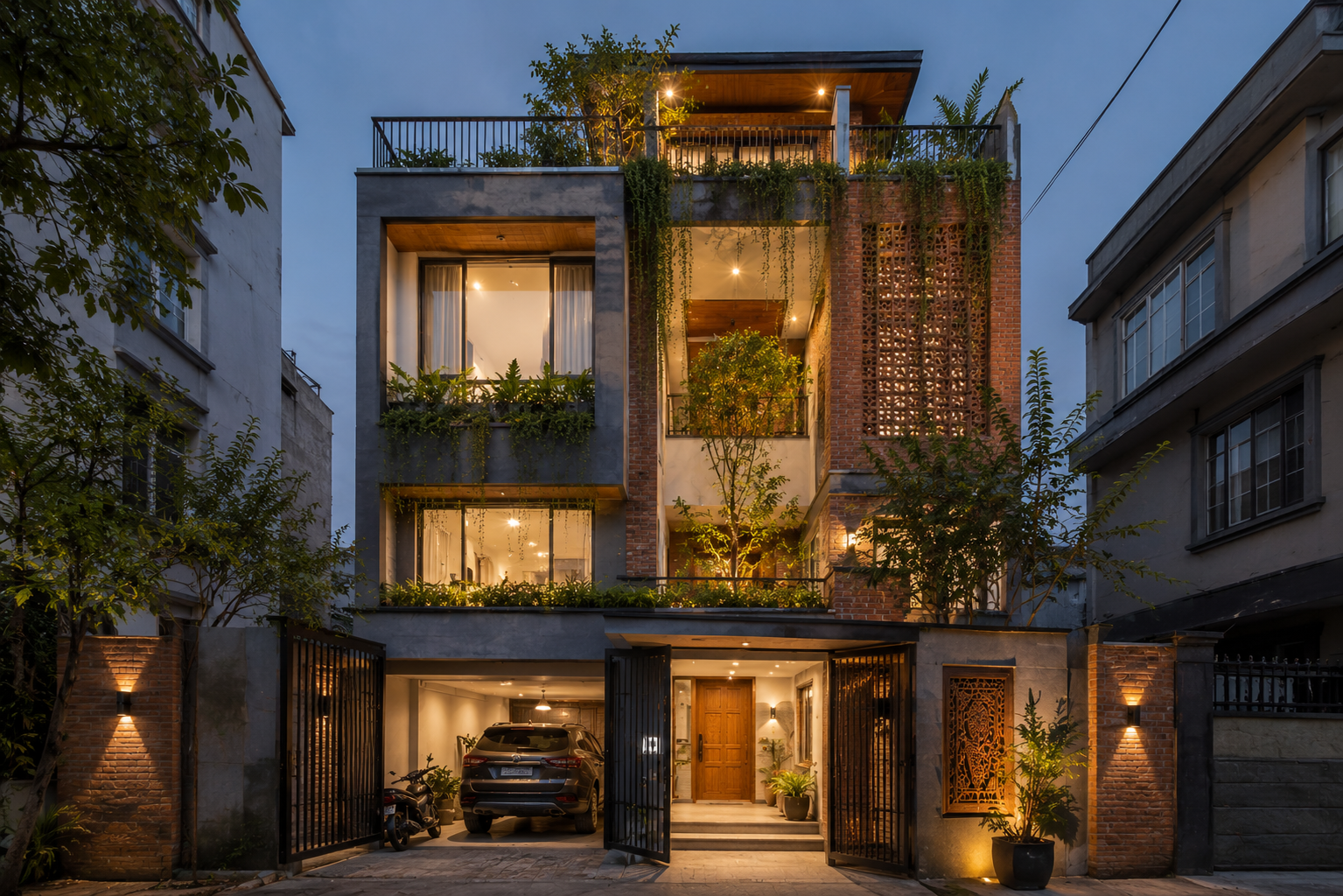

The 'Light-Well' Strategy: Bringing the Outdoors In
One of the biggest issues in Kathmandu's narrow residential blocks is the lack of natural light. When houses are built side-by-side with minimal setbacks, the ground floor often becomes dark and damp. At Vastuveda Designs, we advocate for the internal courtyard or 'Light-Well'. By carving out a small vertical shaft (even 4x4 feet) in the center of the plan, you allow sunlight to penetrate from the roof down to the kitchen on the ground floor.
- Ventilation: The shaft acts as a thermal chimney, pulling hot air out and keeping the house fresh.
- Vastu Compliance: This central open space mimics the traditional 'Chowk', which is highly auspicious in Vastu Shastra.
The Split-Level Revolution
Standard floor plates often feel cramped because of the space wasted on landings and long corridors. For a 3-aana plot, the split-level design is a game-changer. Instead of full floors, the house is divided into half-levels. For example, your living room might be 4 feet lower than your dining area.
This technique creates a sense of openness and eliminates the need for dark hallways. In the context of Nepal’s building bylaws (NBC), split-levels allow you to maximize the height limit while creating distinct functional zones without rigid walls.
Material Choices for Efficiency and Cost
In Kathmandu, construction costs currently average between NPR 3,500 to NPR 5,500 per square foot depending on finishes. To keep a small house within a budget of 80 Lakhs to 1.2 Crore, material selection is key:
- Hollow Concrete Blocks: These provide better thermal insulation than traditional red bricks and reduce the dead load on the structure.
- UPVC Windows: Essential for noise reduction in busy neighborhoods like Kalanki or Chabahil.
- Lightweight Steel Staircases: Instead of bulky RCC stairs, a sleek steel staircase with wooden treads saves nearly 15-20 square feet of usable area per floor.
Smart Storage and Multipurpose Zones
Every inch counts. We recommend utilizing the space under the staircase for a powder room or a concealed pantry. In the Kathmandu climate, where we experience both chilly winters and monsoon humidity, built-in wardrobes should be placed on internal walls to prevent dampness from the outer masonry.
Conclusion
Building on a small plot in Kathmandu doesn't mean compromising on luxury or comfort. By prioritizing verticality, light-wells, and smart materials, you can create a high-performance home that feels twice its actual size. At Vastuveda Designs, we believe that good design is not about how much space you have, but how you use the space you have.
